Ultra Small 1MP OV9734 Low Power Camera Module For Medical Endoscopes

Brand Name : Sinoseen

Model Number : SNS-DZ996-V2.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : camera module

Sensor : 1/9" Omnivision OV9734

Resolution : 1MP 1280(H) x 720(V)

Dimensions : Customizable

Lens FOV : (optional)

Focus Type : Fixed focus

Interface : MIPI

Feature : Endoscope camera module

Contact Now

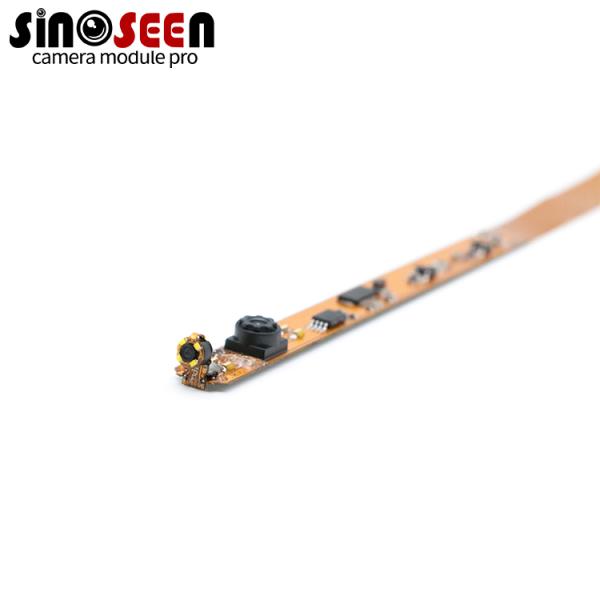

Ultra Small Binocular 1MP OV9734sensor Ultra Low Power MIPI Camera Module for Medical Endoscopes

OEM Customizable Medical Endoscope Camera Module Vision Solution

1MP Camera Module

At present, this micro camera module using OV9734sensor is the smallest 1 million camera module in the industry, and it is also the only 1 million micro camera module with low power consumption. Ultra-thin, ultra-small, ultra-low power consumption. Megapixel camera module. The format it outputs: Mipi . Available camera ports: USB 2.0 A (MD-B21105L); Micro USB B (MM-B21105L); USB Type C (MT-B21105L)

This camera is an endoscopic camera and can be used in medical and industrial endoscopes. We use endoscopes to see lesions that X-rays can't see, so it's very useful to doctors. For example, endoscopists can look at ulcers or tumors in the stomach and use that to determine the best treatment plan.

Specification
Module No SNS-DZ996-V2.0
Pixel Size 1.4μm x 1.4μm
Effective Pixels 1MP 1280(H) x 720(V)
Video output Raw Bayer10bit/8bit
Active Array Size Video Rate 30FPS
Image Sensor 1/9"
Sensor Type Omnivision OV9734
Lens view (optional)
TV Distortion <1%
AEC Support
AEB Support
AGC Support
Operating voltage AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V
Operating temperature -20～70℃
Storage temperature 0～50℃
Dimensions Customizable

Ultra Small 1MP OV9734 Low Power Camera Module For Medical EndoscopesUltra Small 1MP OV9734 Low Power Camera Module For Medical Endoscopes
